OVERVIEW
The YKW-SK121 series comply with IEEE 802.3/ab Gigabit Ethernet standard. It supports two types of media for network connection such as 10/100/1000 Base-Tto 1000 Base SX/LX and connects these two types of segments to operate smoothly
YKW-SK121 series can be used in 16 slot chassis as plug in module

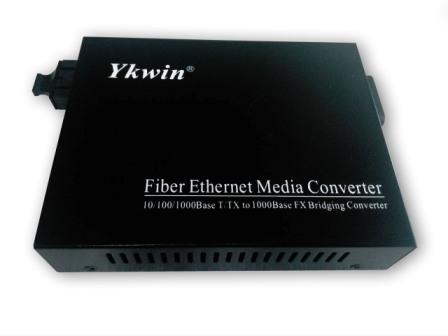

YKW-SK121 series Fiber Media Converter transforms 1000Base-T (Copper Gigabit) media to 1000Base-SX/LX (Fiber Gigabit) media and vice versa. The 1000Base-T port supports full-duplex Gigabit connection at wire speed with RJ45 connector. The fiber Gigabit connection supports shortwave (SX) or long wave (LX) laser optic with multi-mode or single-mode SC type connector.

This converter will give your Copper Gigabit connection the ability to interface with fiber connection over a distance up to 80 km!
10/100/1000 means,  that media converter that converts the electrical signal of a 10/100/1000 Ethernet signal from copper to fiber. This solution will offer a low-cost integration option for network managers who want to migrate from 10/100 networks to Gigabit Ethernet. Gigabit only switches can now be connected to 10/100 networks without the need to upgrade the 10/100 side, allowing network managers to add new equipment gradually

FEATURES
=Compliant with IEEE 1000Base-T and 1000Base-LX
=One 10/100/1000Base-T RJ-45 port autosensing featured!
=One 1000Base-LX/SX Port with/ SC/ST-Type Connector
=Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
=Wall-Mountable, pluggable in universal chassis, or desktop
= Available in SingleFiber WDM versions - 1310/1550 nm wavelenghts used
=Standards: IEEE802.3z/ab 1000Base-T 1000Base-SX/LX
=LED Indicators: FX LINK, FX FDX, TP LINK, TP FDX, ACT, POWER
=Data rate: 2000Mbps full duplex
=TP: 1000 FDX with NWAY auto-negotiation

Wavelength
Multi-mode: 850nm; Single-mode: 1310nm, 1550nm

Fiber cable(m):
8.3/125, 8.7/125, 9/125 or 10/125 single-mode

Maximum distance: Multimode;550m Single-mode;20km/40km/60km/80km/100km/120km
Power supply: 100 to 240VAC 50 to 60Hz
Input power: 2A +5V
Dimensions: 70mm(L)X94mm(W)X25mm(H)

Environment
Relative humidity: 5% to 90%
Operating temperature: -10 to 75
Storage temperature: -20 to 85
